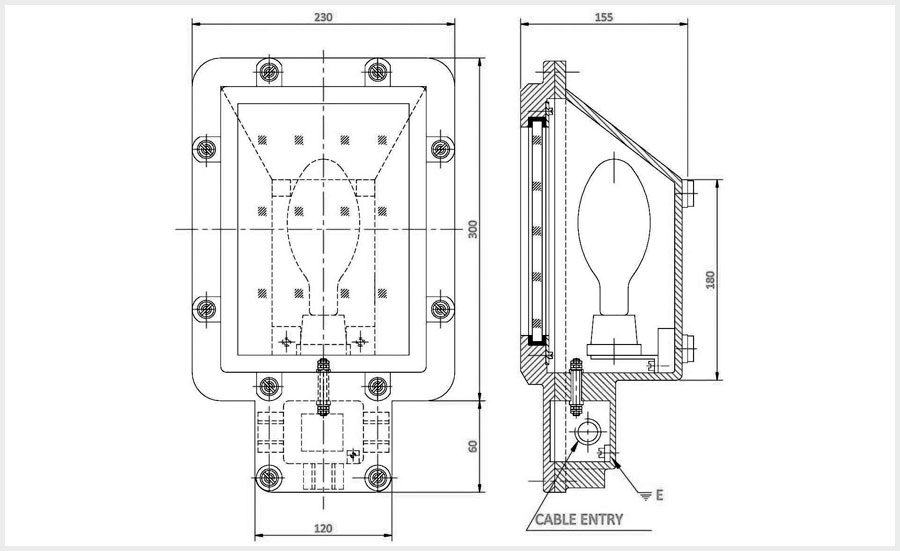

Flameproof Bulkhead Fitting - Technical Specification
| Catalogue No. | PFP/BL/02 |
| Type of Ex-Protection | AS PER IS / IEC-60079-1:2007 |
| Zone Classification | Zone 1 & Zone 2 |
| Gas Group | Gas Group I, IIA, IIB |
| Ingress IP Protection | IP-65 IS / IEC60529-2001 |
| Material of Contraction | Die Cast Aluminum Alloy LM6 |
| Rating | 160W MLL, 2 X 23W CFL, 30W, 45W, 60W LED |
| Lamp Holder | Enclosed Break Porcelin E-27 |
| Glass | Type "A" Toughened AS PER IS:2206 /84 (Part-I) |
| Paint | Epoxy Polyester Powder Coating |
| Earthling | Internal: 01 No. & External: 2 Nos. |
| Cable Entry | 02 Nos. for M20 ( 3/4” ET) |
| Hardware | Stainless Steel |
Patco flameproof manufacturers and suppliers of flameproof bulkhead fitting products in Mumbai, India more than 20 years of experience in this field. We have designed with premium quality materials, reliable solutions and assured performance.
