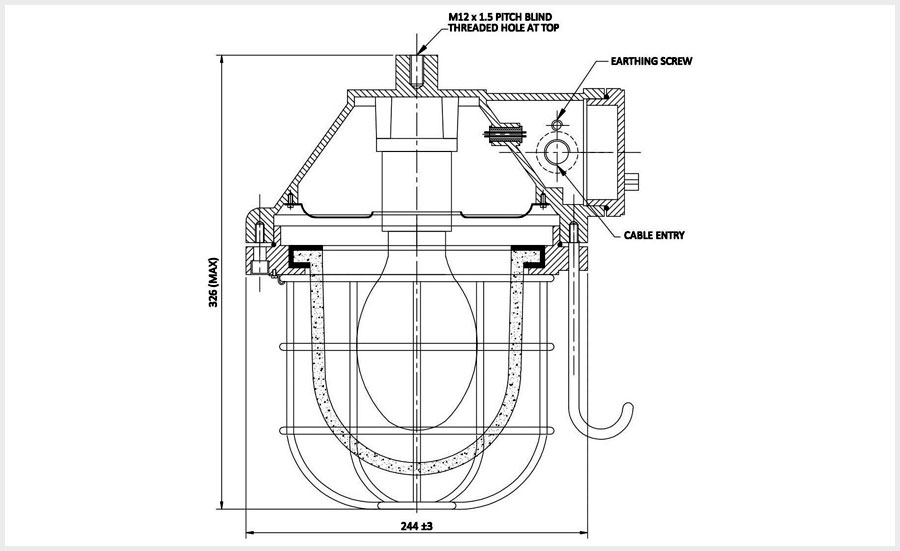

Flameproof Well Glass Fitting Specification
| Catalogue No. | PFP/WG/06 |
| Type of Ex-Protection | AS PER IS 2148-2004/IEC-60079-1:2007 |
| Zone Classification | Zone 1 & Zone 2 |
| Gas Group | Gas Group I, IIA, IIB |
| Ingress IP Protection | IP-65 IS / IEC60529-2001 |
| Material of Contraction | Die Cast Aluminum Alloy LM6 |
| Rating | 160 MLL, 2 X 23W CFL, 36W CFL 30W, 45W, 60W LED |
| Wire Guard | M.S., White Powder Coated |
| Lamp Holder | Enclosed Break Porcelin E-27 |
| Glass | TYPE "A" Toughened AS PER IS:2206 / 84 (PART-I) |
| Paint | Epoxy Polyester Powder Coating |
| Earthling | Internal: 01 No. & External: 2 Nos. |
| Cable Entry | 02 Nos. for M20 (3/4” ET) |
| Hardware | Stainless Steel |
Our company is manufacturers and suppliers of flameproof well glass fitting in Mumbai, India with ISO certified and durable features. Flameproof well glass fitting is designed by patco flameproof with international standard. We have more than 20 years of experience in this field and manufacturing quality standard products.
