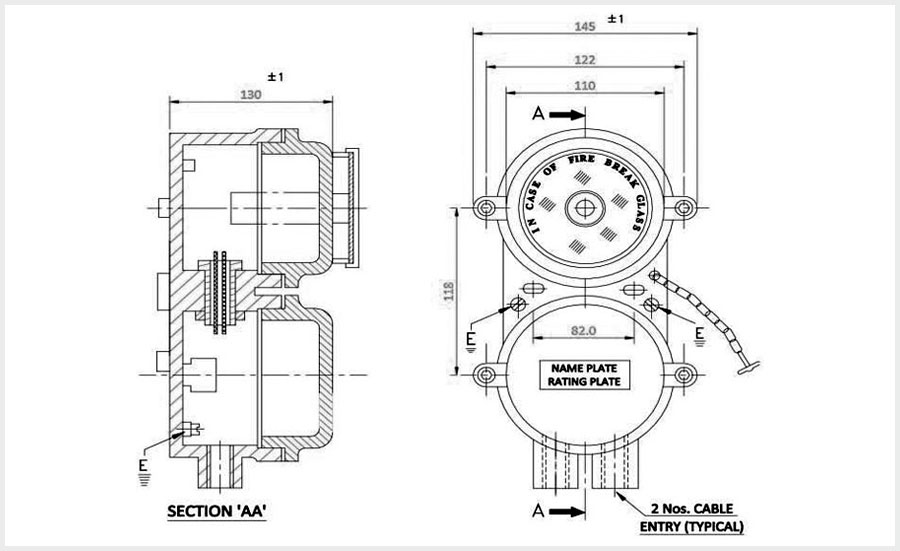

Flameproof Manual Call Point - Technical Specification
| Catalogue No. | PFP/FA/09 |
| Type of Ex-Protection | AS PER IS / IEC-60079-1:2007 |
| Zone Classification | Zone 1 & Zone 2 |
| Gas Group | Gas Group I, IIA, IIB |
| Ingress IP Protection | IP-65 IS / IEC60529-2001 |
| Rating | 10A 415V, AC/1A, 250V DC 50Hz |
| Contact Element | 10A 415V AC / 1A 250V DC |
| Actuator | Spring Loaded 1 No. |
| Glass | Breakable Glass 1 No. |
| Material Of Contraction | Die Cast Aluminum Alloy LM6 |
| Paint | Epoxy Polyester Powder Coating |
| Earthling | Internal: 01 No. & External: 2 Nos. |
| Cable Entry | 02 Nos. for M20 ( 3/4” ET) |
| Hardware | Stainless Steel |
