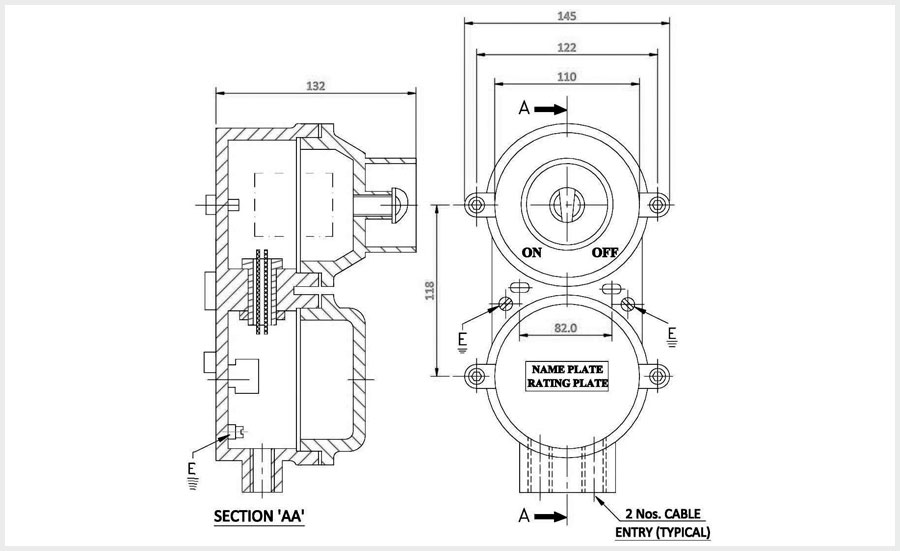

Flameproof Rotary Switch Technical Specification
| Catalogue No. | PFP/RS/09 |
| Type of Ex-Protection | AS PER IS 2148-2004 / IEC-60079-1:2007 |
| Zone Classification | Zone 1 & Zone 2 |
| Gas Group | Gas Group I, IIA, IIB |
| Ingress IP Protection | IP-65 IS / IEC60529-2001 |
| Material of Contraction | High Pressure Die Cast Aluminum Alloy LM6 |
| Switch | Upto 32 A SP / DP / TP |
| Paint | Epoxy Polyester Powder Coating |
| Earthling | Internal: 01 No. & External: 2 Nos. |
| Cable Entry | 02 Nos. for M20 (3/4” ET) |
| Hardware | Stainless Steel |
We are manufacturers and suppliers of flameproof rotary switch in Mumbai, India with quality materials, certified standards and reliable operation. We have wide range of rotary switches used in hazardous area with required safety.
