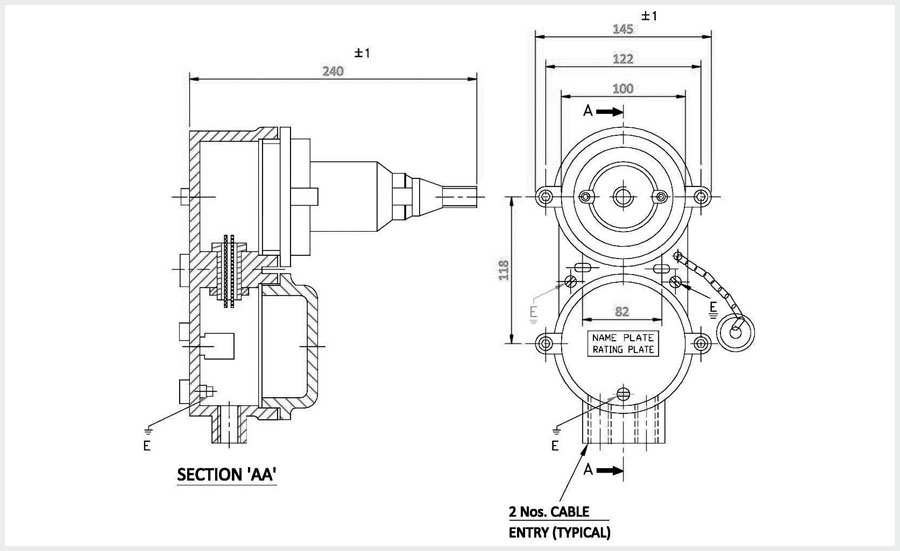

Flameproof Switch Socket with Plug Specification
| Catalogue No. | PFP/SS/09 |
| Type of Ex-Protection | AS PER IS 2148-2004 / IEC-60079-1:2007 |
| Zone Classification | Zone 1 & Zone 2 |
| Gas Group | Gas Group I, IIA, IIB |
| Ingress IP Protection | IP-65 IS / IEC60529-2001 |
| Material of Contraction | High Pressure Die Cast Aluminum Alloy LM6 |
| Paint | Epoxy Polyester Powder Coating |
| Earthling | Internal: 01 No. & External: 2 Nos. |
| Cable Entry | 02 Nos. for M20 ( 3/4” ET) |
| Hardware | Stainless Steel |
| Switch | Upto 32 A SP / DP / TP |
| Socket | 3 PIN / 4 PIN / 5 PIN |
| Plug | 3 PIN / 4 PIN / 5 PIN |
| Terminals | Clip on Type Rail Mounted & Strip Type |
We are manufacturers and suppliers of flameproof switch socket with plug in Mumbai, India to all over the world with assured safety connection. These switch socket with plug is suitable for outdoor and indoor with certified standards. Patco flameproof have explosion proof and flameproof switch socket with plug for ensure safely operating.
